How to Fix Cannot Install VMware Tools in Windows Server 2012 in VMware Workstation

September 6, 2023
in Blog, VMware
0
ADVERTISEMENT

Table of Contents

Install VMware Tools

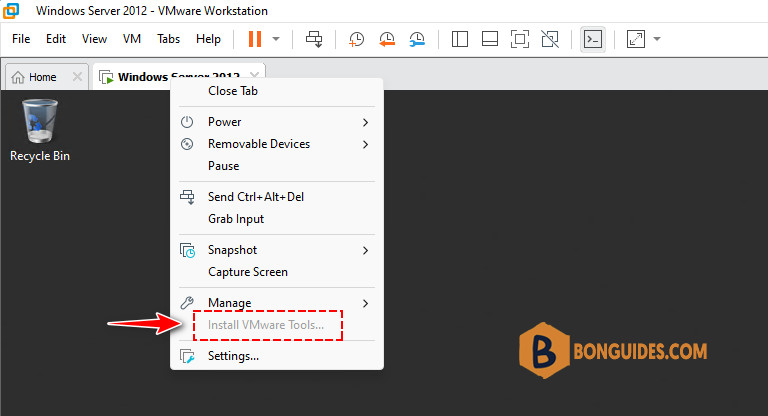

In some cases, the Install VMware Tools option is greyed out and you cannot install the tools for the virtual machine. In this case, we cannot install the VMware Tools on our Windows Server 2012 virtual machine.

nhcUOANf8eSaS9Ox7FG1557lgFSAOQpQMtqD9diTKqUvF85vw2SEXw8RW8sG

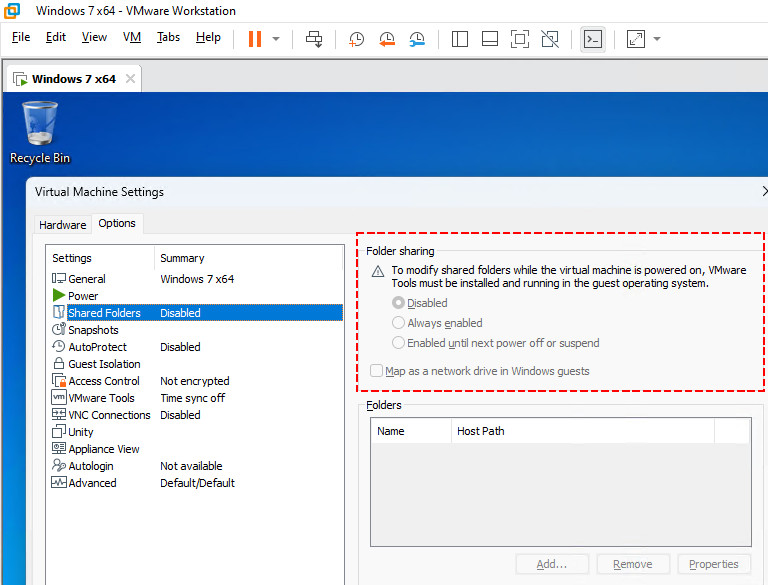

When the VMware Tools isn’t installed. the VM screen gets smaller, and you cannot copy/paste between VM and the physical machine. Drag/ drop and shared folder features also not working.

WpYZUCxN1aHJsPmZUXyvUMx4RWGjZDAkFILYUA23WvD8bQfHXkVvXnlL1WNq

Fix the Install VMware Tools Greyed out

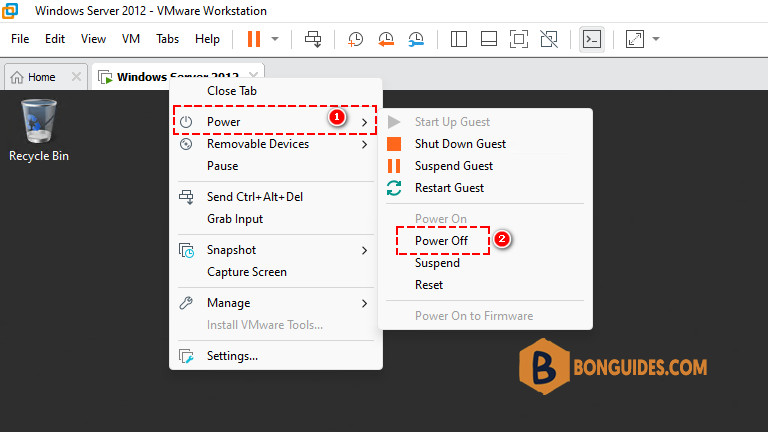

1️⃣ First, right click on the VM tab then power off the virtual machine that you want to install VMware Tools.

beXR9K45JRLo0rUUInZcgOfuQa3IERthL5R2cjRXT26UYcxXr4ftVLYVwz2T

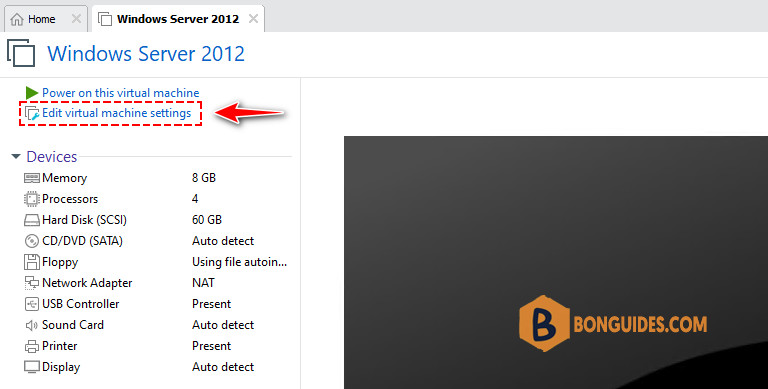

2️⃣ When the VM is not running, let’s edit virtual machine settings.

5R8fb9L3MGDoC4xpfib8aD7npY1oOOY2D7cmsNPTKtt83XtX0myTEUQyCYFH

3️⃣ In the virtual machine settings page, select the Floppy then remove it. Click OK to save the changes then turn on the virtual machine.

Note You get it because you install this VM in typical auto mode instead of custom mode.
Bg1857

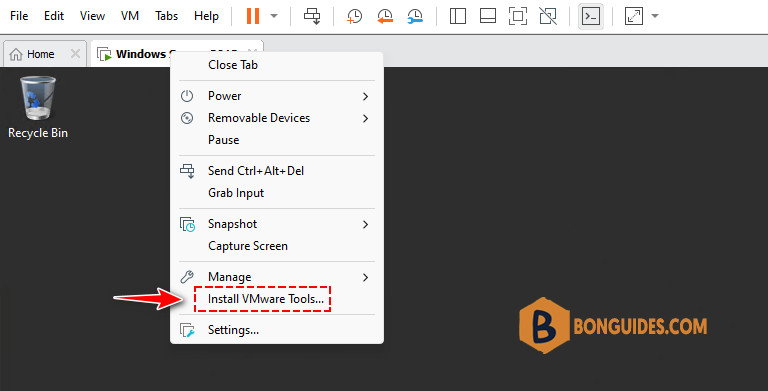

4️⃣ Once the VM started, as you can see, you can install the VMware Tools normally.

KSoaIEQsprvYGUUvfDgkf2jz4DqSIjMt7KCP4p0hAGpw8UbPOLIhsOMCnnu2

Install the VMware Tools manually

In some cases, after remove the Floppy drive from the VM, the Install VMware Tools still greyed out. You can try to install the VMware Tools manually.

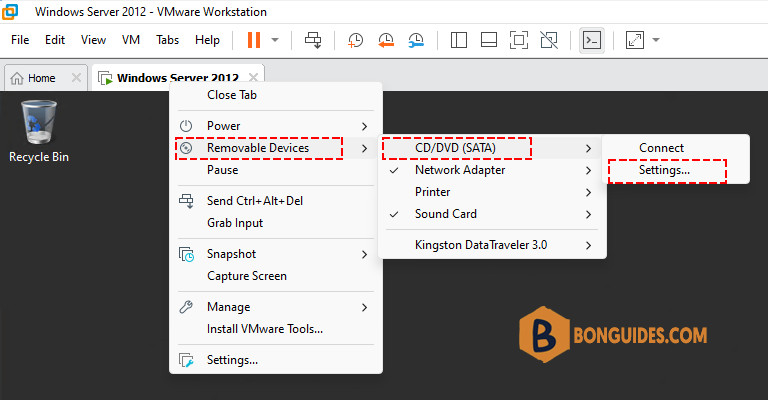

1️⃣ Right click on the VM tab > Removeable Devices > CD/DVD (SATA) > Settings…

Vs7QYCf2lmebZf11PjFDAbqL6IJWEBTC5F7hvCaz3BKF4UKwkvpIBgsZrbDJ

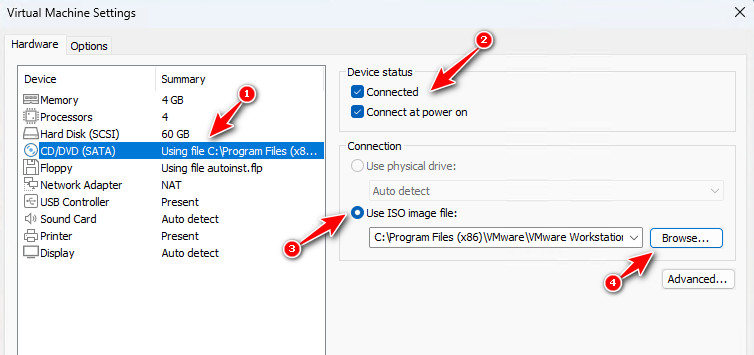

2️⃣ In the VM settings page, select CD/DVD > Select the checkboxes > Select the radio button Use ISO image file > Then click Browse… button.

51UdrbOlTJ6Q7D0yUjqjptAq0BebJPKW69R0G5LyNiD79IfqtdOM3WrZbJKH

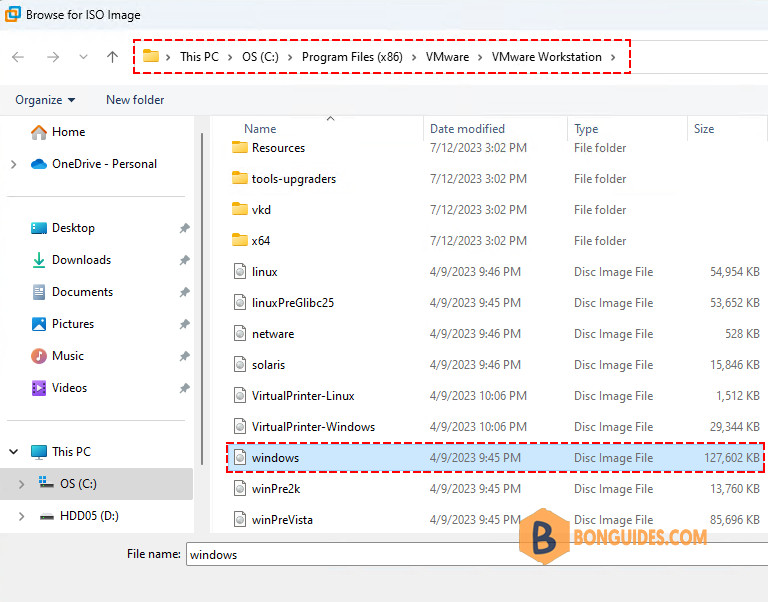

3️⃣ Navigate to the installation location of VMware Workstation then select the file named windows.iso (Disk Image File). This is the VMware Tools for Windows.

C:\Program Files (x86)\VMware\VMware Workstation
YMIGHwtnk3ONnYeKcyCYvstDbBPld0ryeX8OKPrlk8SLbWnSKCU8HqhWQKsP

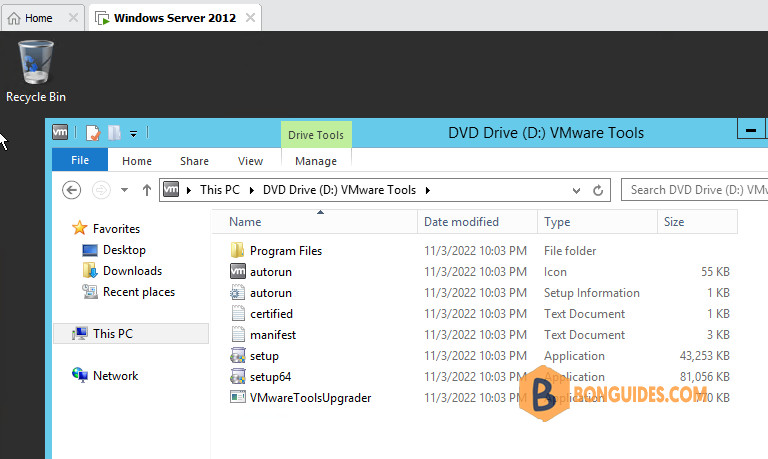

4️⃣ Click OK, then go back to the VM. The file would be mounted into the VM automatically. From here, you can install the VMware Tools as normal.

lv6IV7rpClcz4y8eDemNNUwYnHEMXp8IWgejhahXtKLAJBurhuHm4zZ1uOf7

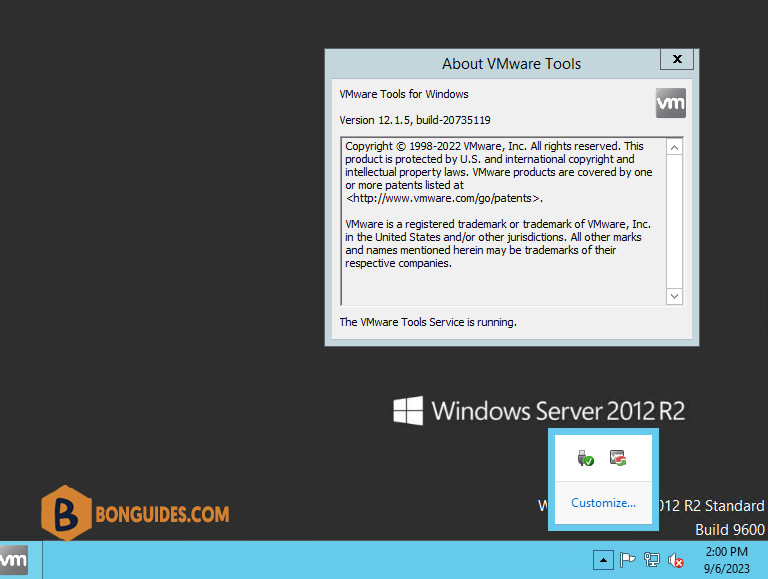

Once the tools have been installed, restart the VM. You can check the VMware Tools Services from the VM Windows taskbar (see the below screenshot).

nz7OdAGsQnQcBwM6TDLsbz1lp5rCOYYpH5RN7d9r0jObxzJWGzlr4olxUgkj

Not a reader? Watch this related video tutorial:
