Hardware accelerated GPU scheduling feature in Windows 10 represents a fundamental redesign in how Windows Display Driver Model (WDDM) works. While Microsoft says users won’t see any significant changes after activating it now, some believe that the feature will eventually reduce input lag on low-end and mid-core processors.
In theory, Windows 10 hardware accelerated GPU scheduling feature passes most GPU scheduling tasks to a dedicated GPU-based scheduling processor, which should free up the CPU a little and can potentially result in a small input lag improvement.
Once you’ve got the latest version of Windows 10 and drivers, you can turn on or off the feature using Settings and Windows Registry.
Turn On or Off Hardware Accelerated GPU Scheduling in Settings

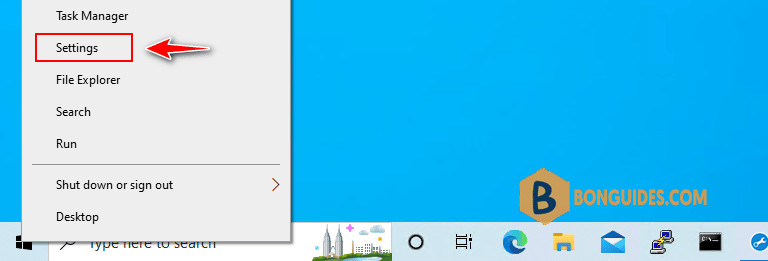

1. Right-click on the Start Menu then select Settings.

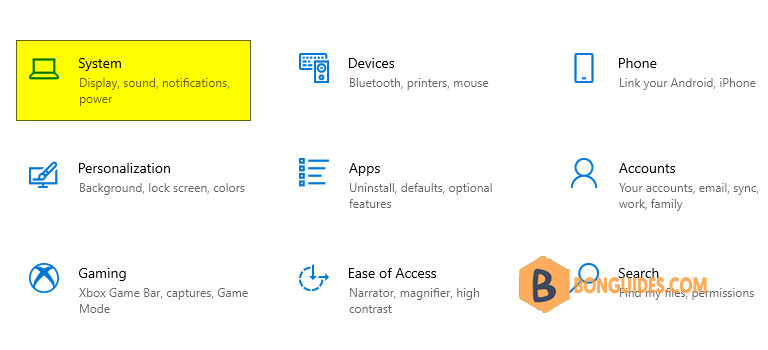

2. In Settings, click on System.

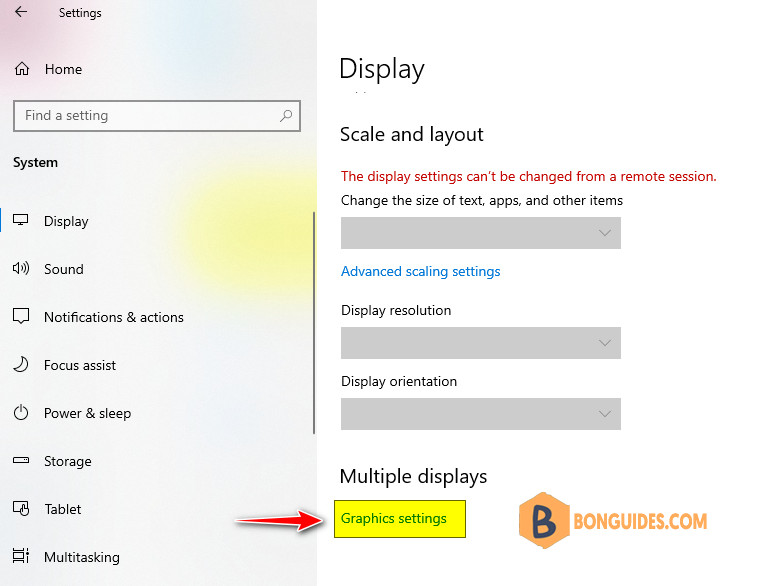

3. Select Display tab then under the Multiple Displays section, select Graphics settings.

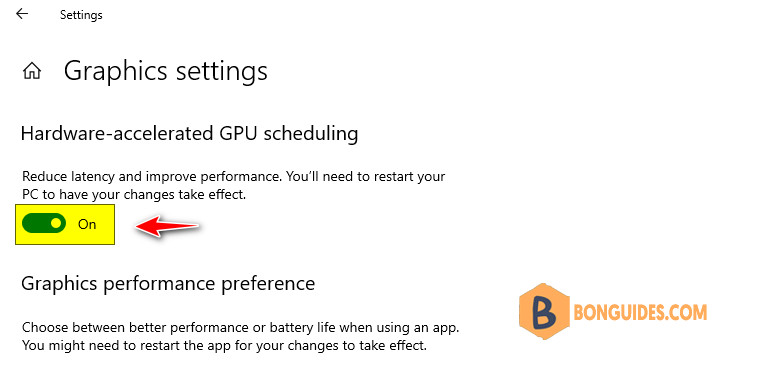

4. Turn on or off Hardware-accelerated GPU scheduling option then restart your computer to take the changes go into effect.
Enable Hardware Accelerated GPU Scheduling using Registry
1. Type regedit into the Windows search box then click Registry Editor from the result to open it.
Note
Alternatively: Press to open the Run box. Type regedit into the box then hit .

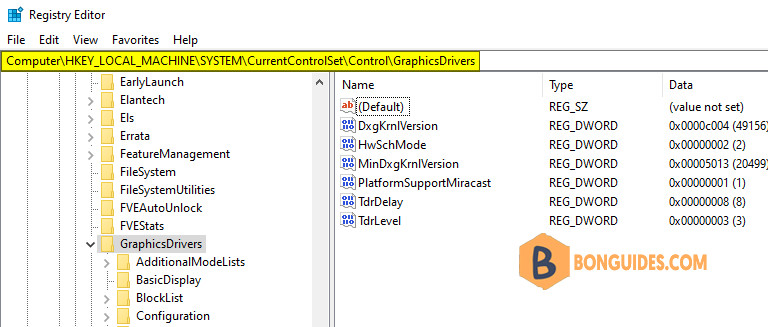

2. Navigate to the following key in the left sidebar or you can paste it into the address bar then hit .
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\GraphicsDrivers

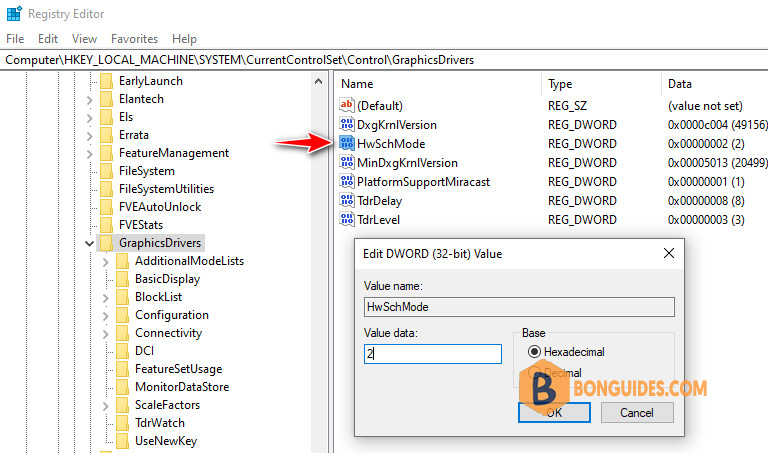

3. Locate DWORD named HwSchMode. Use value 2 to turn it On and 1 to turn it Off.
